RCA Theremin Cabinet Drawings

In 1997, I visited then Big Briar (now Moog Music) to see their theremin factory. While I was there, I took these detailed measurements from Bob Moog's RCA theremin, model number AR-1264, Serial number 200190. Whether you're restoring an RCA cabinet or building a new one from scratch, I hope you'll find these useful! The pictures are page-sized, so I've provided links to them here. They are each JPEGs around 150k in size.

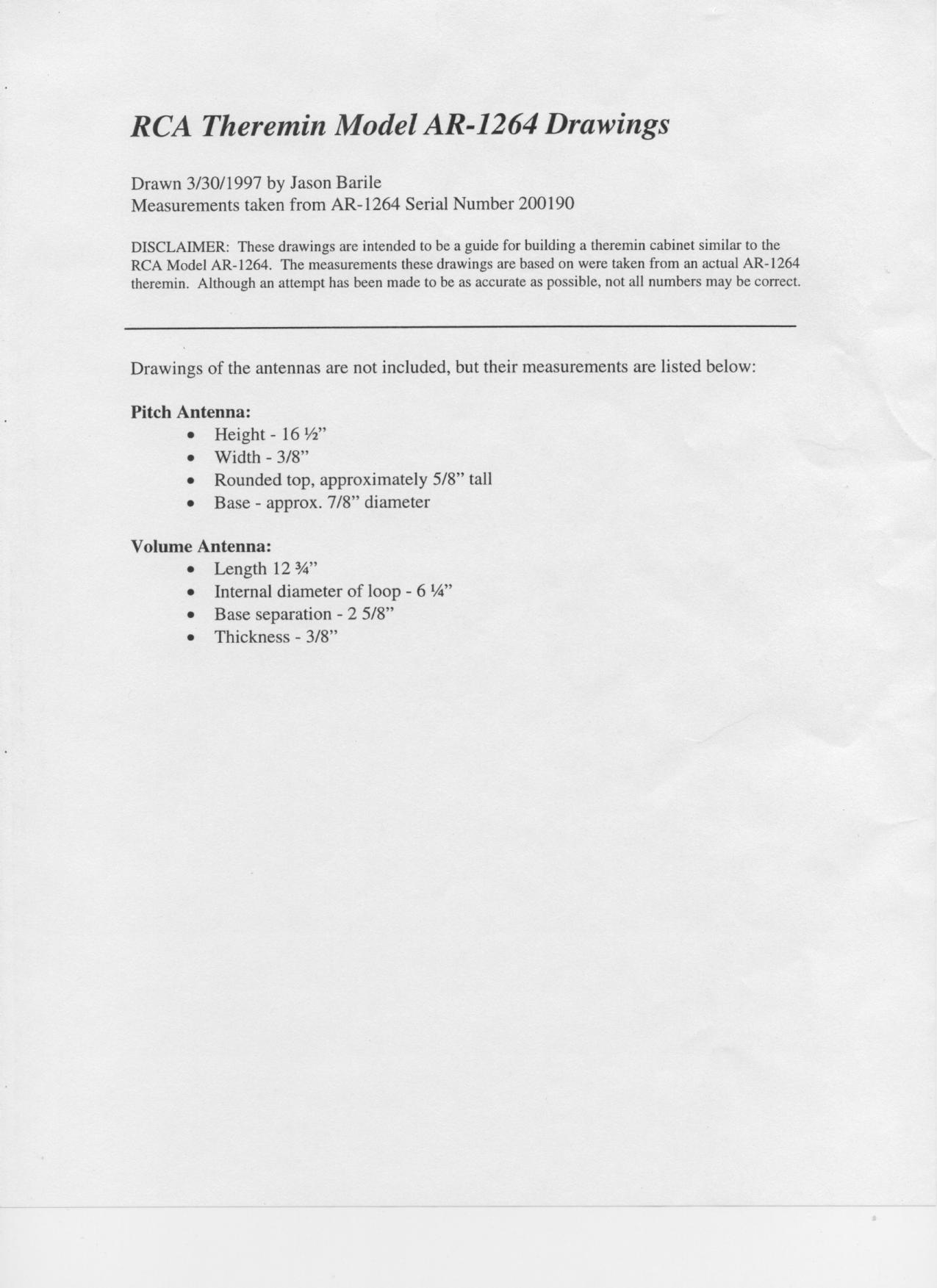

• Misc measurments

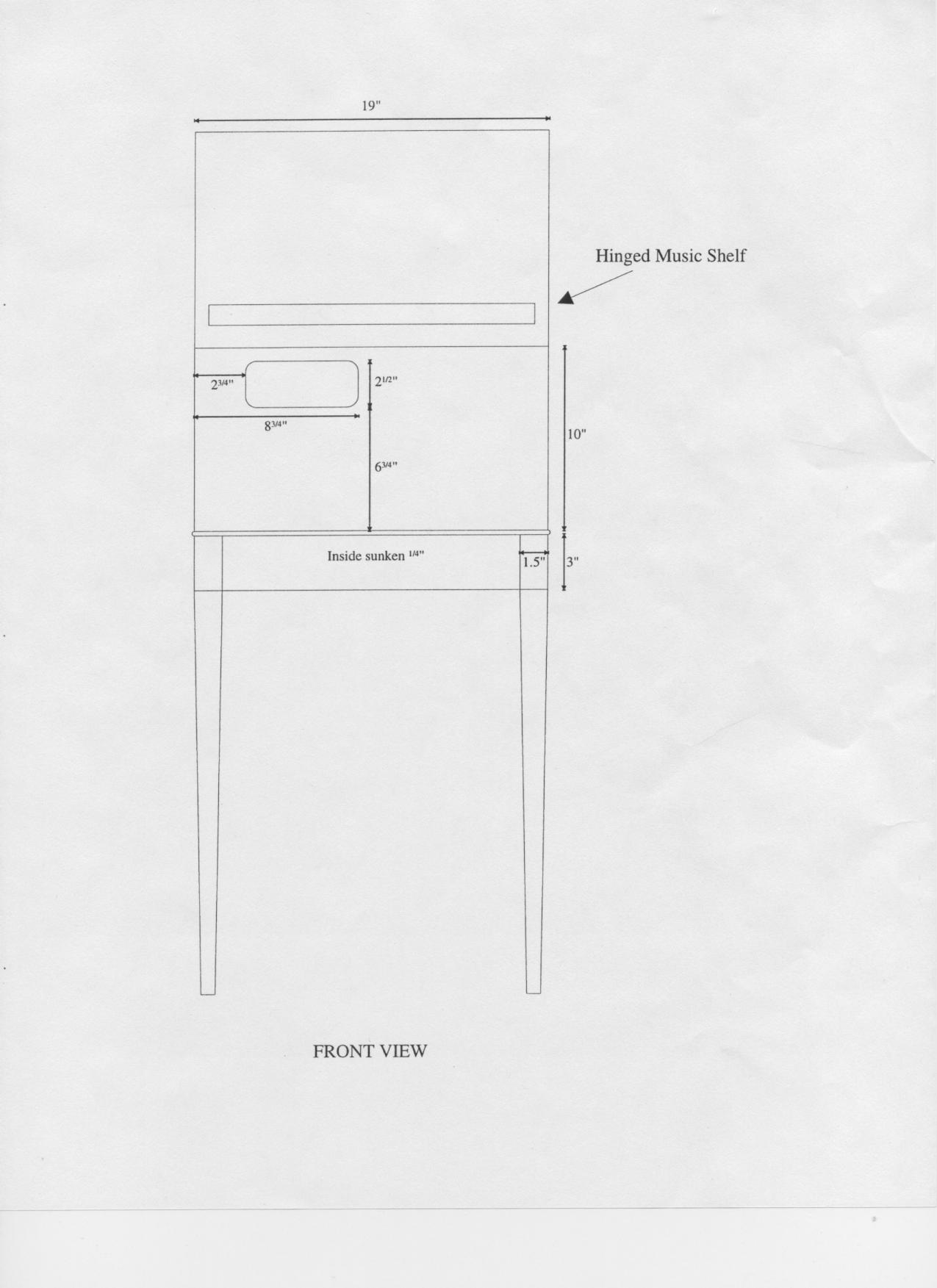

• Front View

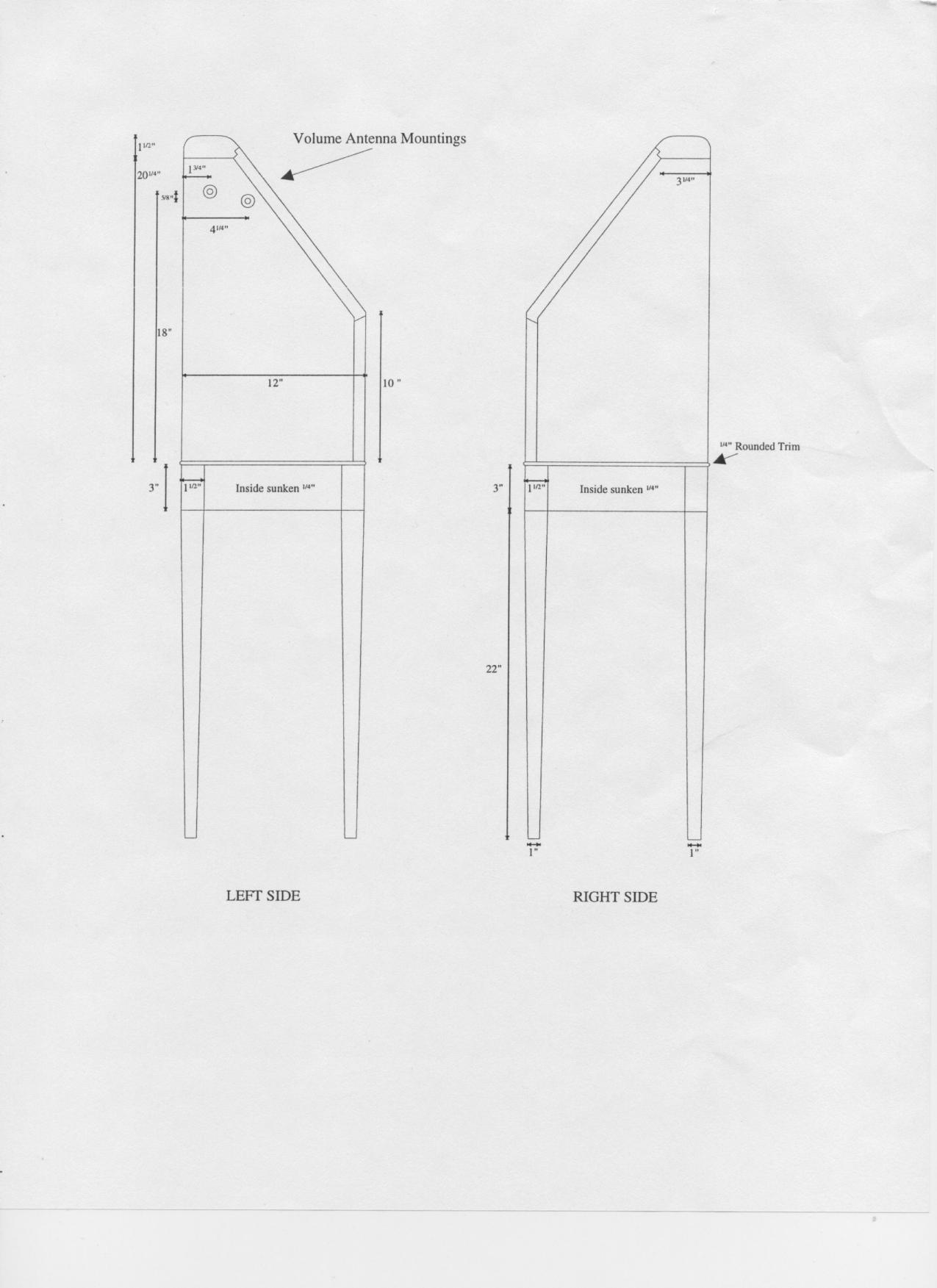

• Side View

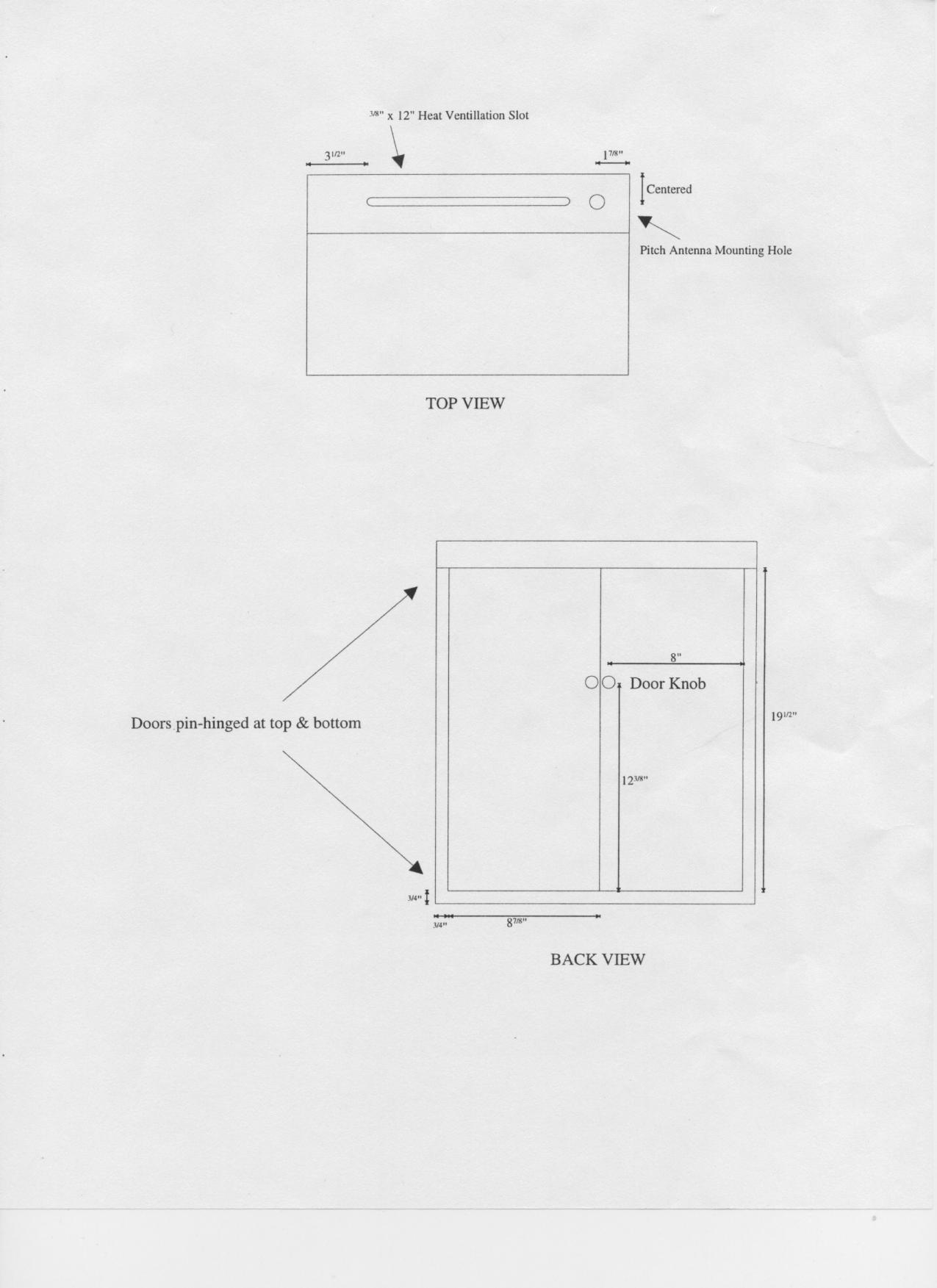

• Top View

-Jason
