Pierre Genet's Tube Theremin

Pierre has built a new tube theremin design based loosely on the RCA theremin. He has graciously shared his scematic and several sample sound clips with us! If you have questions or comments on the design, feel free to post in our theremin construction forum or contact Pierre via e-mail.

Schematics

• Schematic (Word .doc, ~81kb)
• Parts list (Word .doc, ~1.4MB)

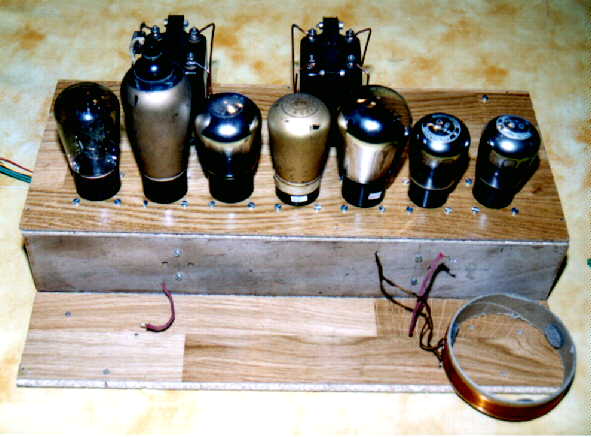

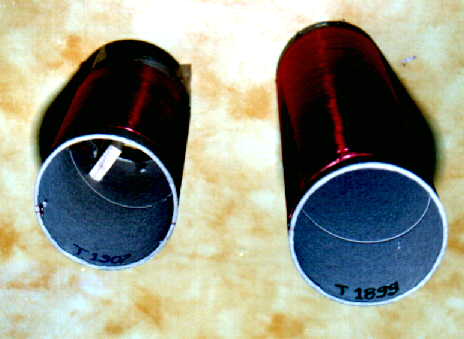

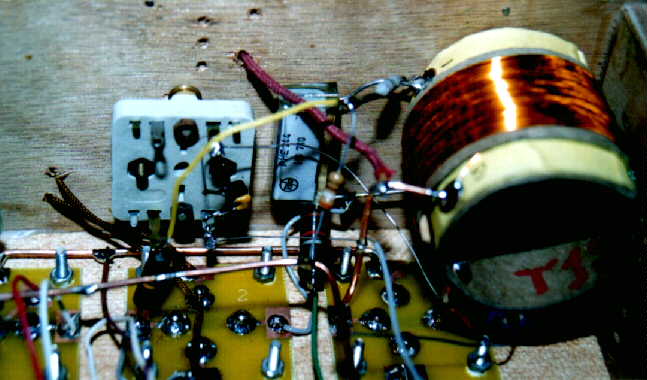

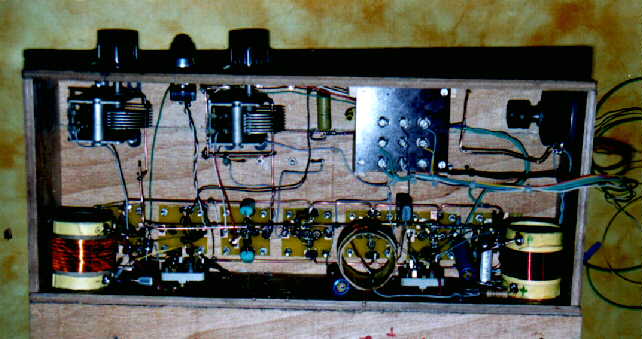

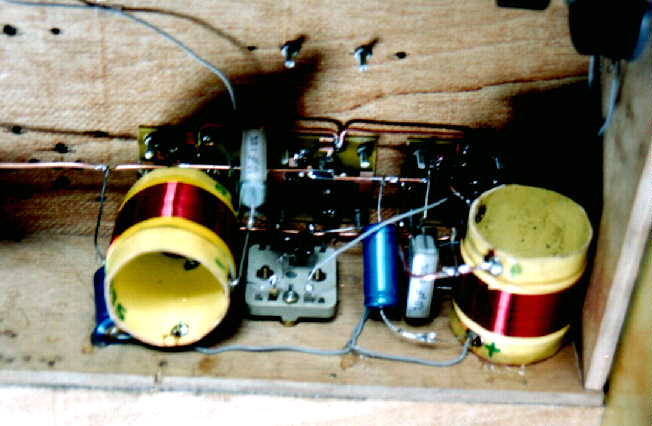

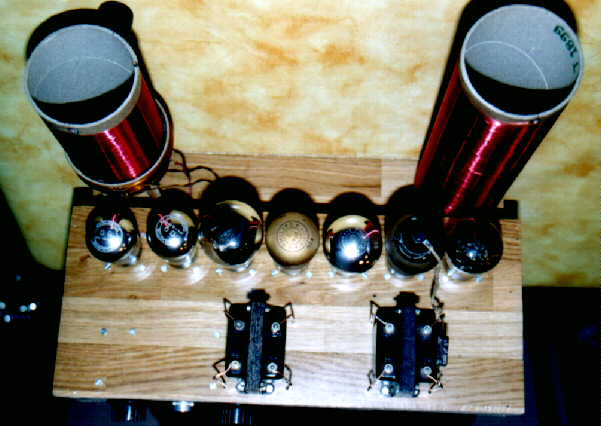

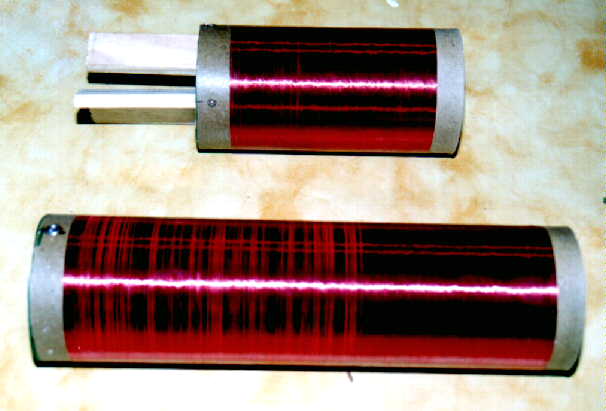

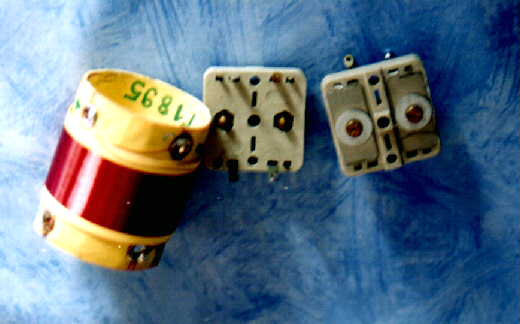

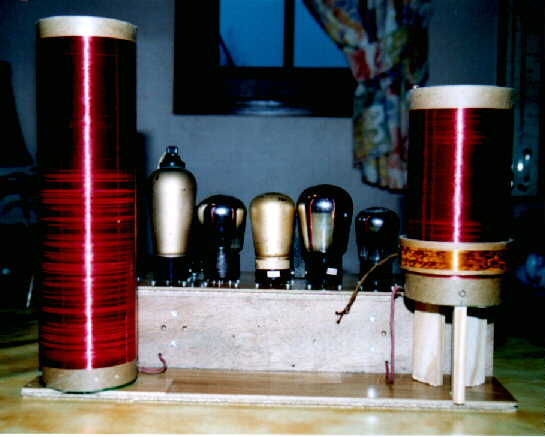

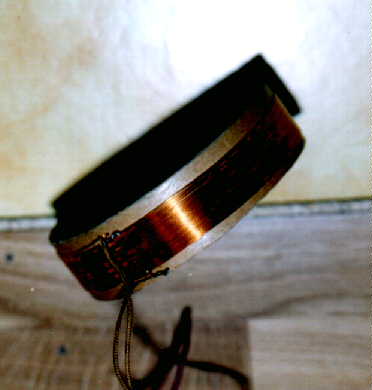

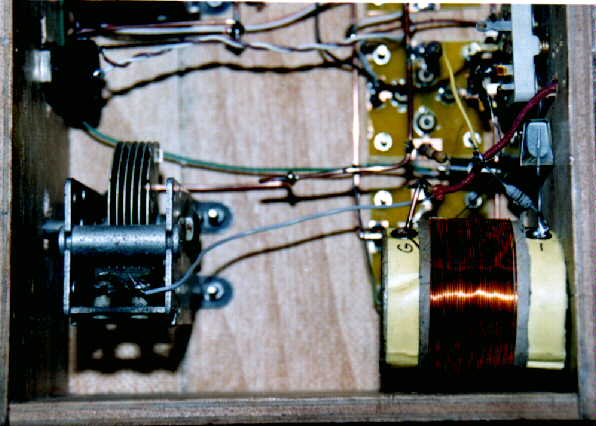

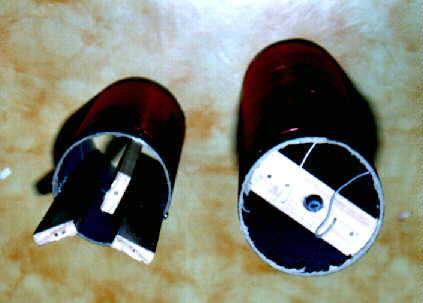

Photos

Click the pictures below for full-sized images.

Sounds

• genetp1.mp3 (MP3, ~360k)
• genetp2.mp3 (MP3, ~680k)
• genetp3.mp3 (MP3, ~220k)
• genetp4.mp3 (MP3, ~965k)
